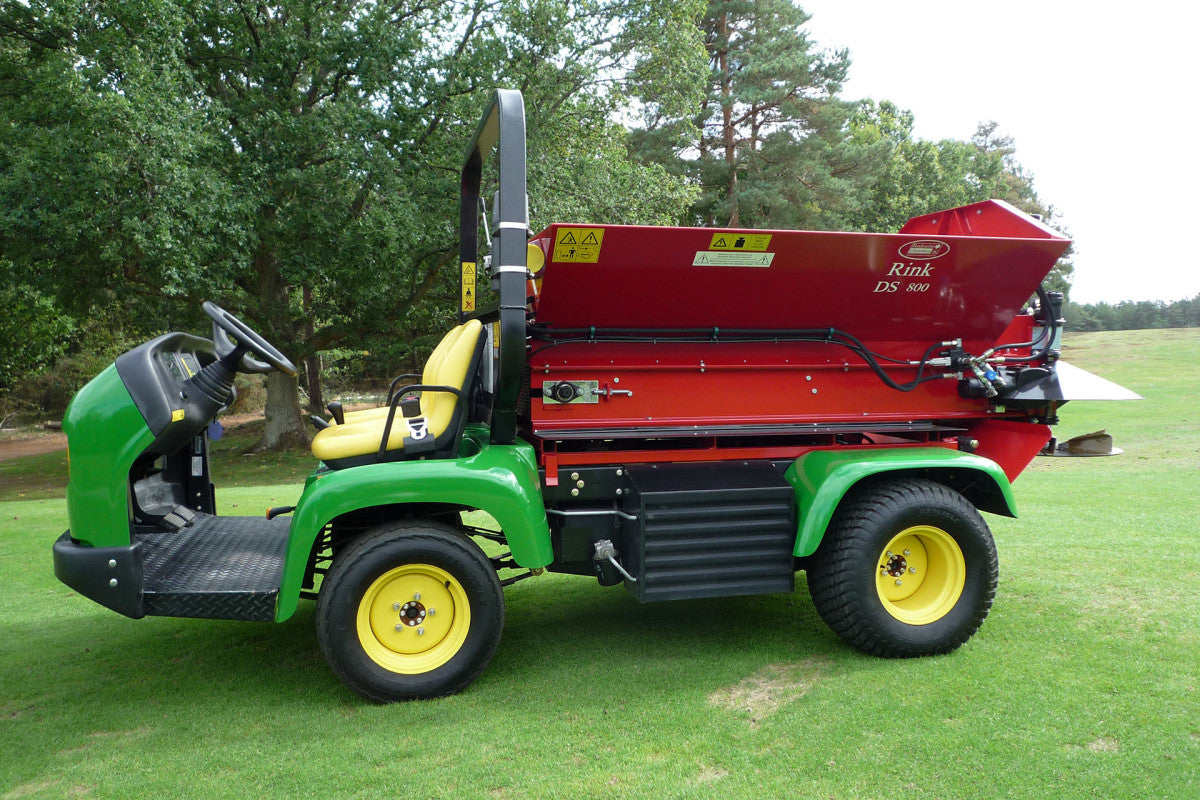

Rink DS800 Mounted

Rink DS800 Mounted

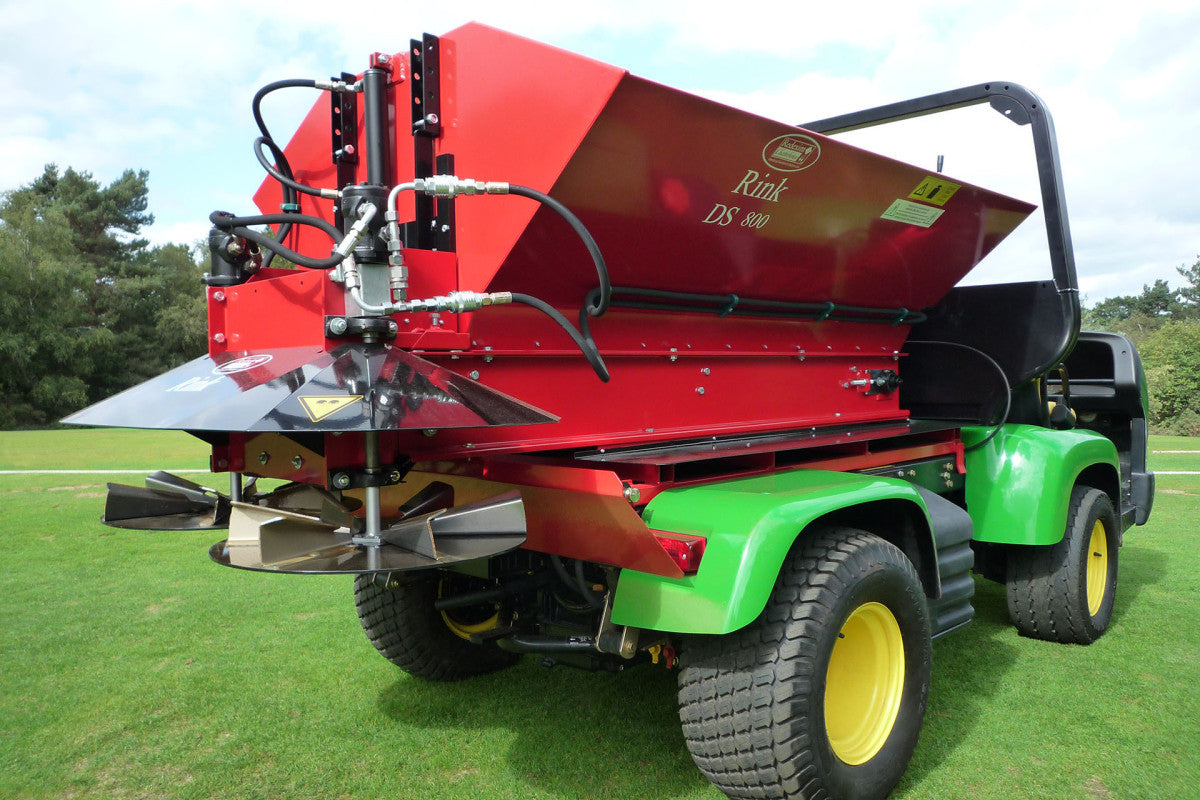

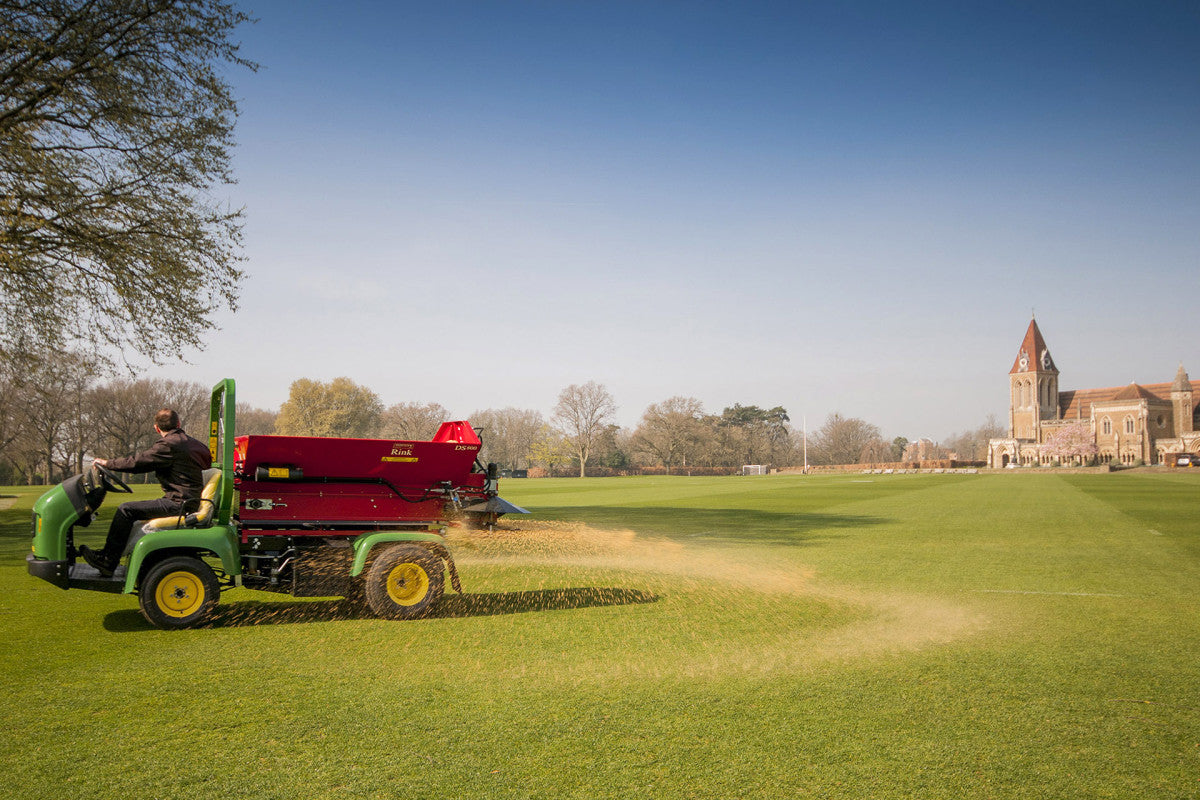

The Rink DS800 disc spreader distributes a range of material, the integrated transport belt moves wet or dry material to the rear of the machine to be spread. The spreading width & thickness can easily be adjusted from the operator’s seat while the unit can be mounted on a range of utility vehicles

• Hydraulic rear door prevents spillage
• Wide hopper makes for easy loading
• for J.Deere Progator. Toro Workman & Jacobson XS
• See the Rink DS1200 trailed for larger areas

1. Up to 12 m (472 in); 0.5–15 mm depth.
2. Utility vehicles (e.g., ProGator, Workman, Truckster).
3. ≥25 L/min at 140 bar (≈2030 psi); hydraulic conveyor to discs.
4. 0.8 m³ (28.3 ft³) hopper, easy-loading, hydraulic rear door for spill prevention.
5. Approx. 420 kg (926 lb); mounted option keeps ground footprint light and improves access.
