Cultimer L300 T

Cultimer L300 T

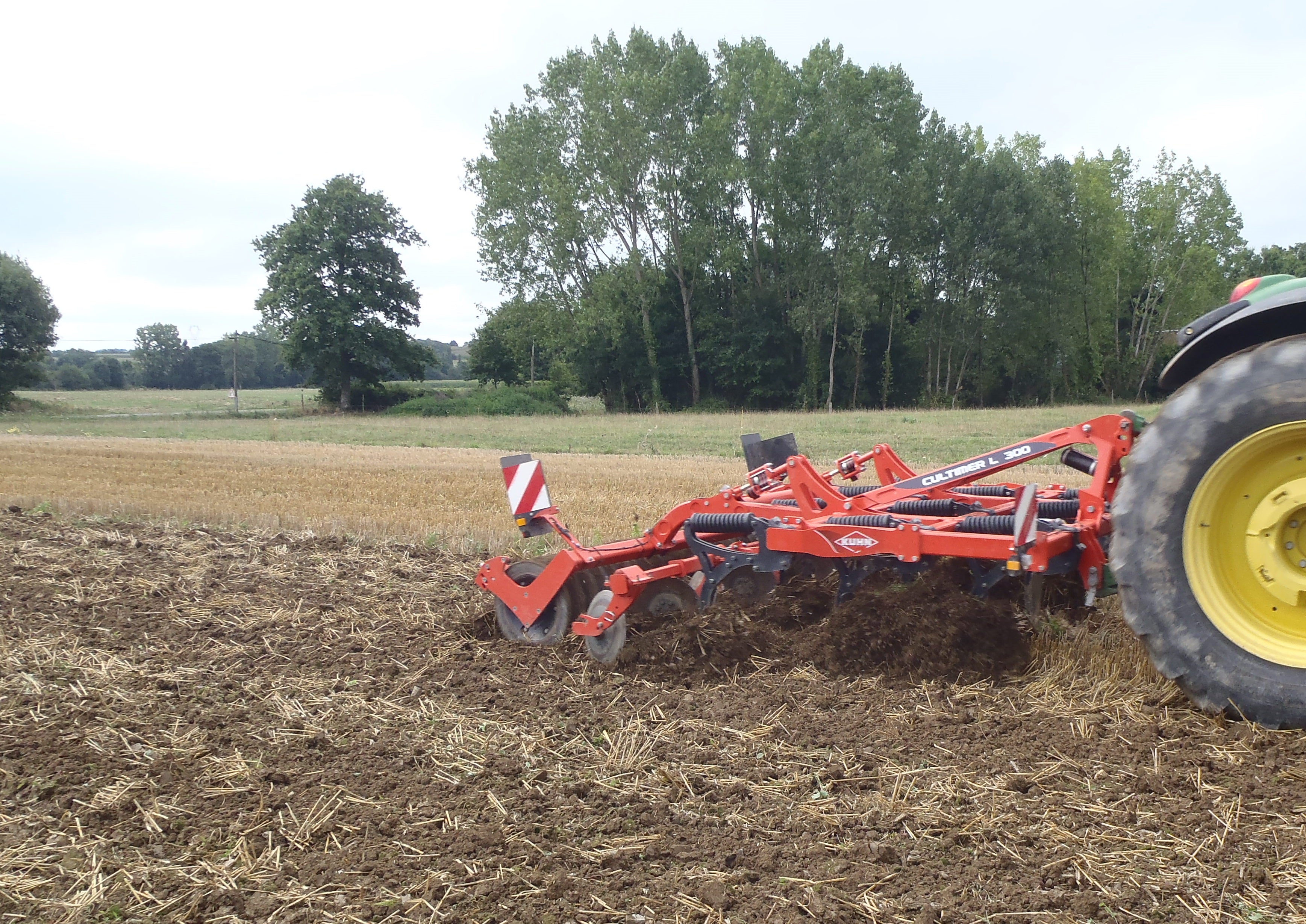

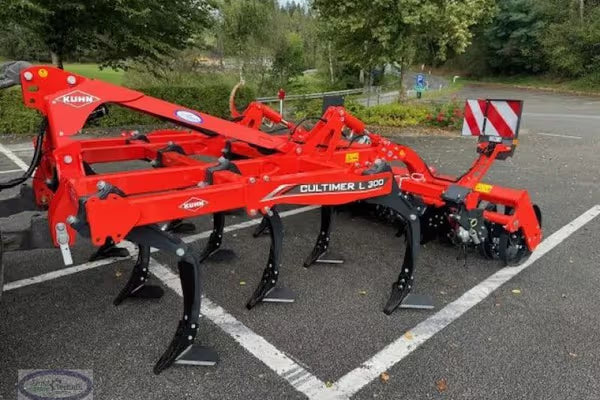

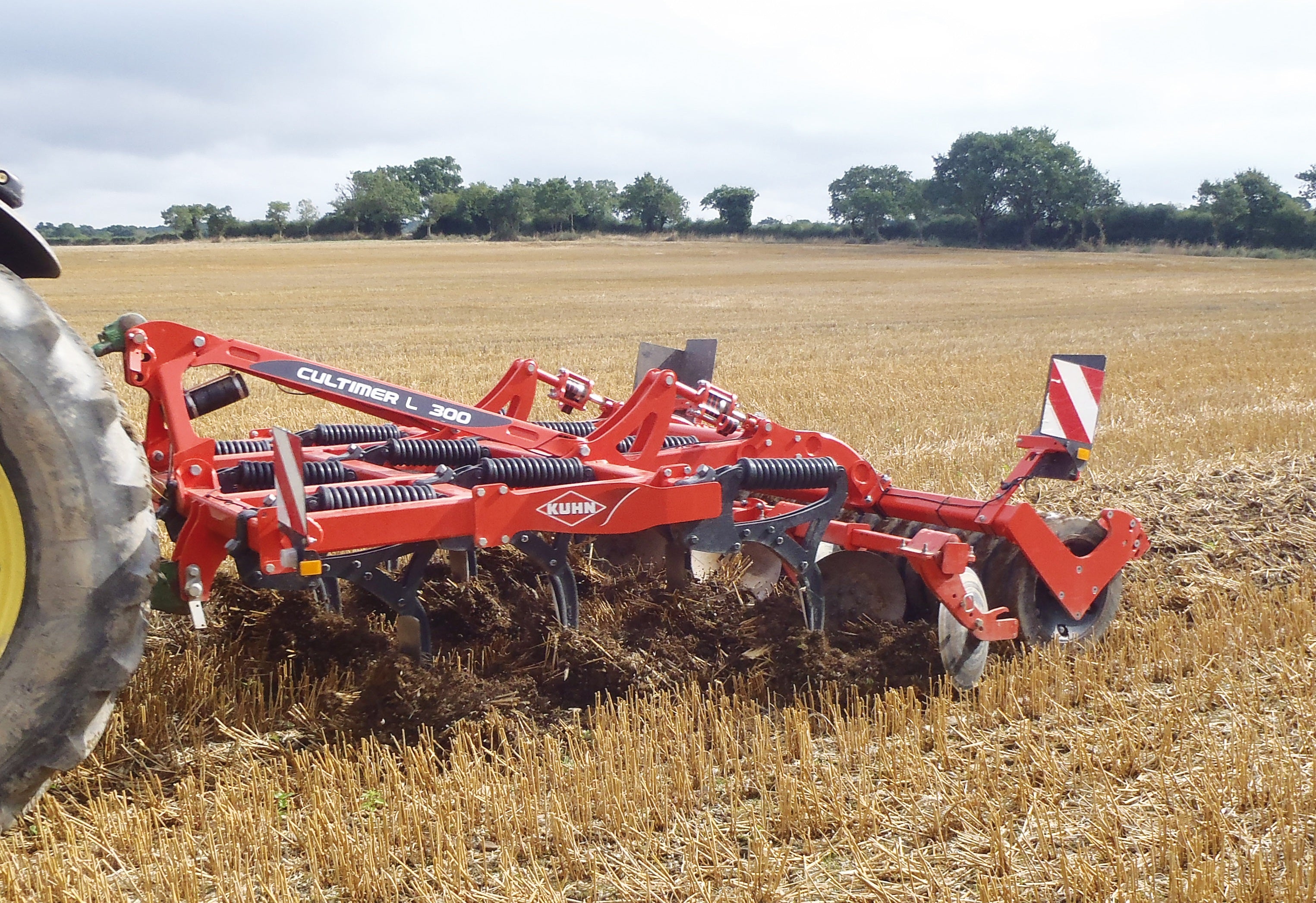

The Cultimer L 300 T is a trailed, 3-row stubble tine cultivator designed for versatile soil preparation. It offers efficient mixing of soil and crop residues, making it ideal for shallow and deep stubble cultivation.

• Curved Tine Design with Twisted Deflectors: Ensures uniform mixing of soil and residues, improving decomposition and seedbed quality.
• Non-Stop Mechanical (NSM) Safety System: Double spring mechanism with 600 kg pressure at the tip and up to 30 cm vertical release for obstacle clearance.
• High Underbeam Clearance: 85 cm clearance prevents blockages in high-residue conditions.
• Versatile Roller Options: Compatible with T-ring and cage rollers for optimal soil consolidation.

1. Type: Trailed stubble cultivator.
2. Working Width: 3.0 m (transport width same).
3. Power Requirement: Around 132 kW (~180 hp) minimum.
4. Tines & Discs: 10 tines and 8 levelling discs for residue management.
5. Working Depth: Adjustable from 5 to 35 cm for shallow to deep cultivation.
