7400A TerrainCut™

Description

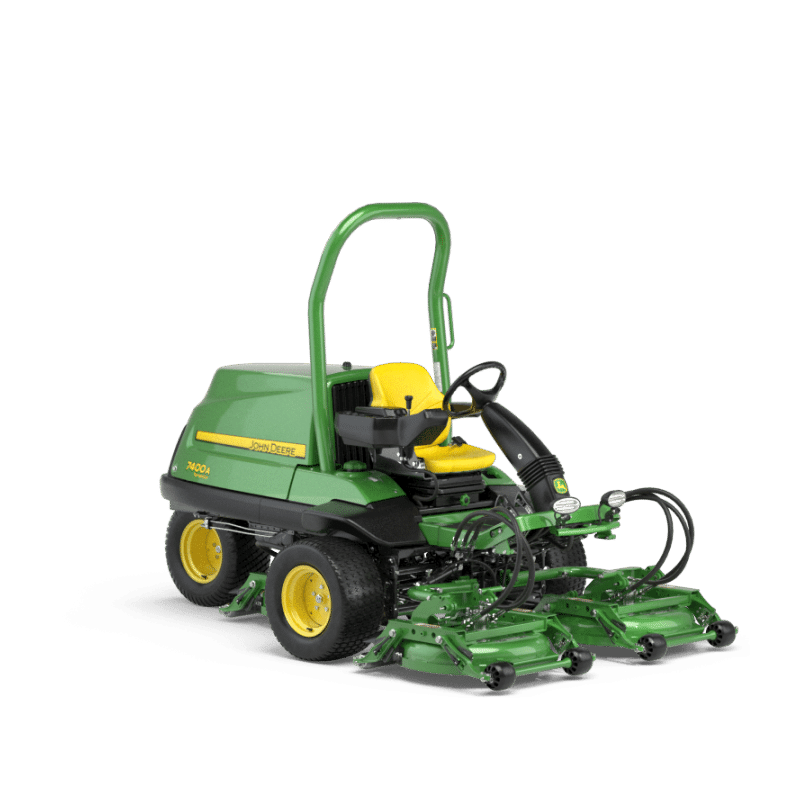

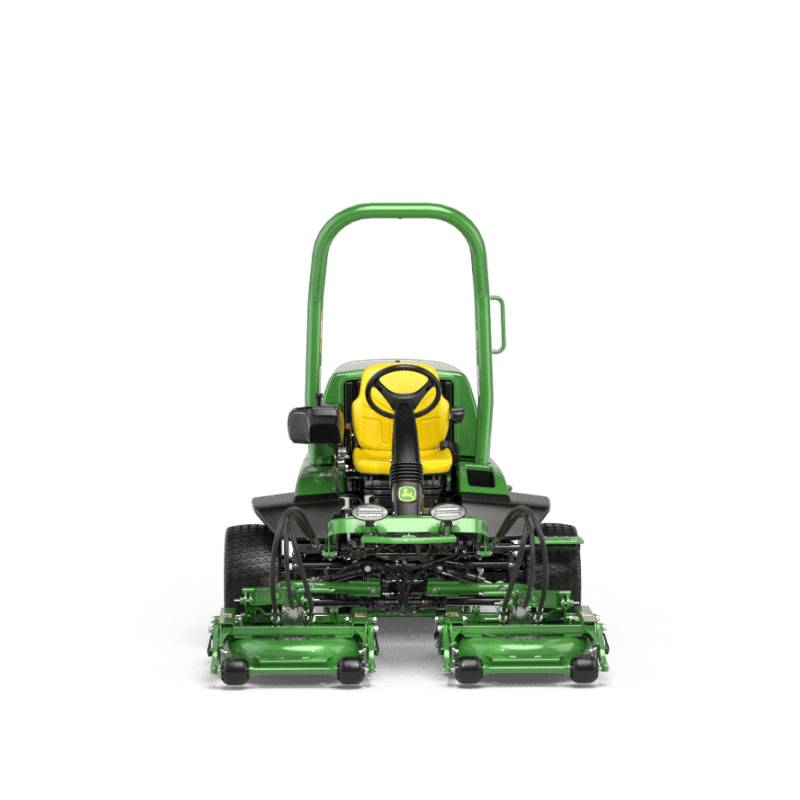

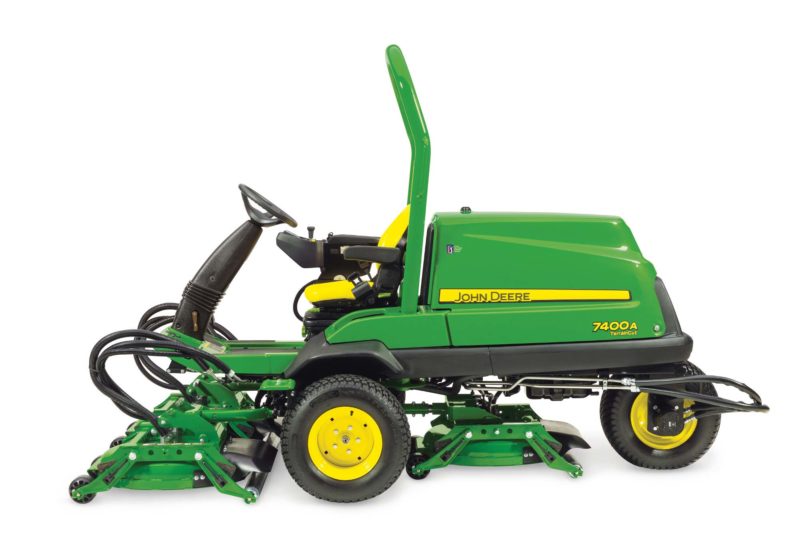

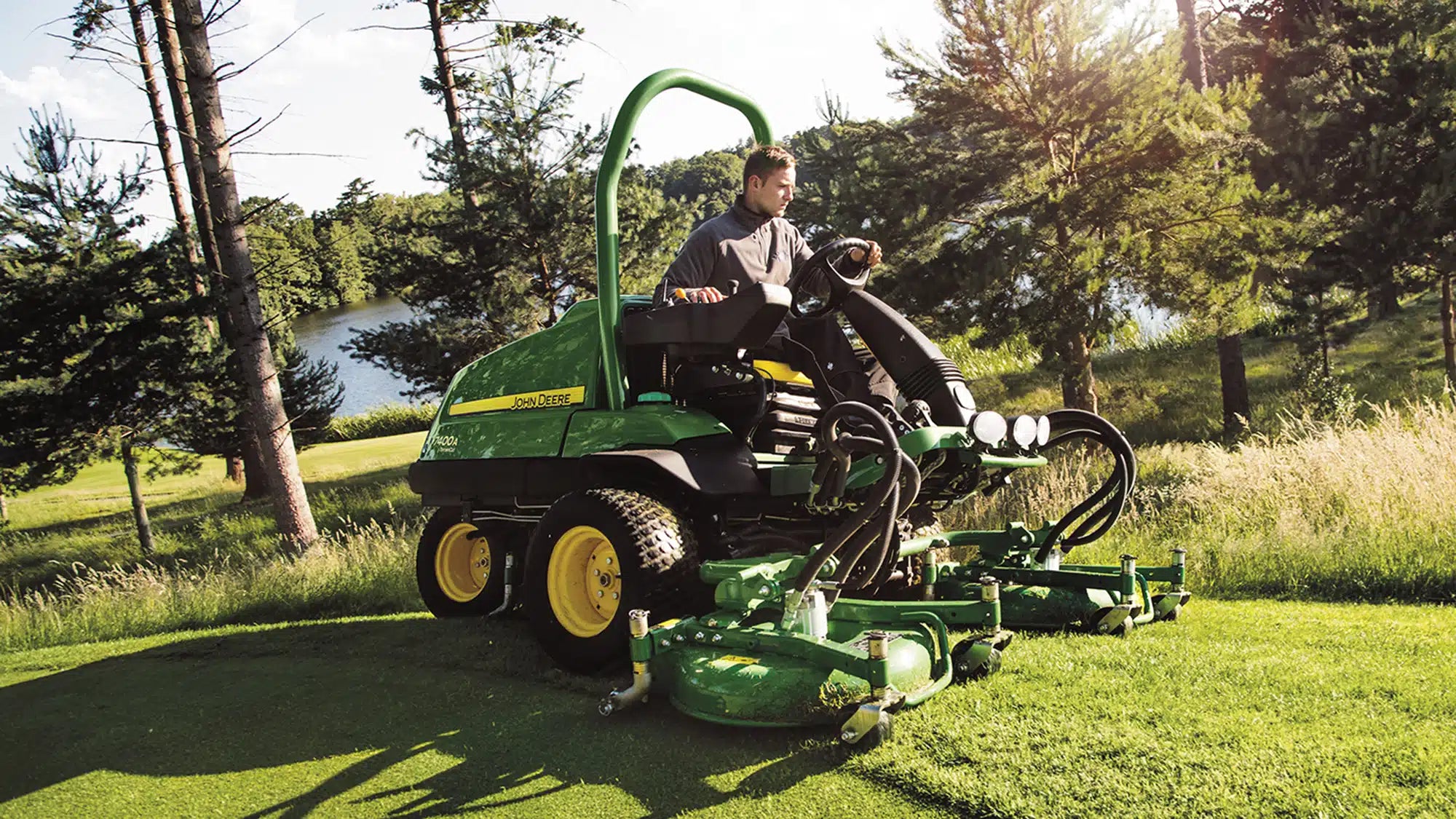

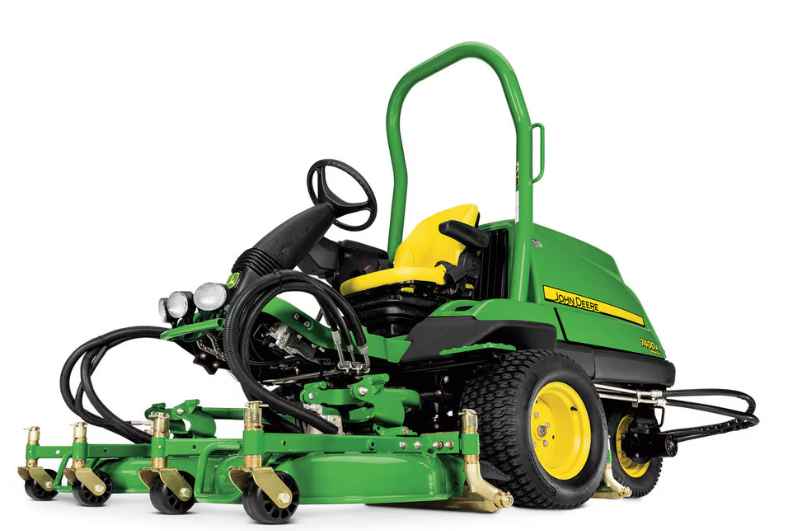

7400A TerrainCut™ Trim & Surrounds Mower

Engine: 3‑cylinder turbocharged direct‑injection diesel, approx. 41.6 hp (31 kW) at 2,800 RPM; 1.568 L displacement.
Transmission / Traction Drive: Gear-driven hydrostatic pump to wheel motors; GRIP AWD active during mow/transport; full‑time 3WD.
PTO / Deck Drive: Rear-discharge rotary decks engaged via electric switch on Command Arm.
Hydraulics / Hitch: Hydraulic power steering with double-acting cylinder; hydraulic capacity approx. 45.4 L.
Weight / Fuel: Operating weight approx. 2,760 lb (1,252 kg); fuel tank capacity approx. 45.4 L (12 U.S. gal).

Features

TechControl™ Display – Passcode-protected display allows quick control of mow speed, diagnostics, and settings.
LoadMatch™ System – Automatically adjusts speed to maintain consistent cut quality on all terrains.
Width-on-Demand – Toggle cutting width between 68 in and 74 in on the fly.
Tool-Free Height Adjustment – Quick, lever-controlled HOC setting with clear gauge and rugged notched system.
eHydro™ hydrostatic pump and large-capacity wheel motors for serious hill-climbing capabilities.
