683R

Description

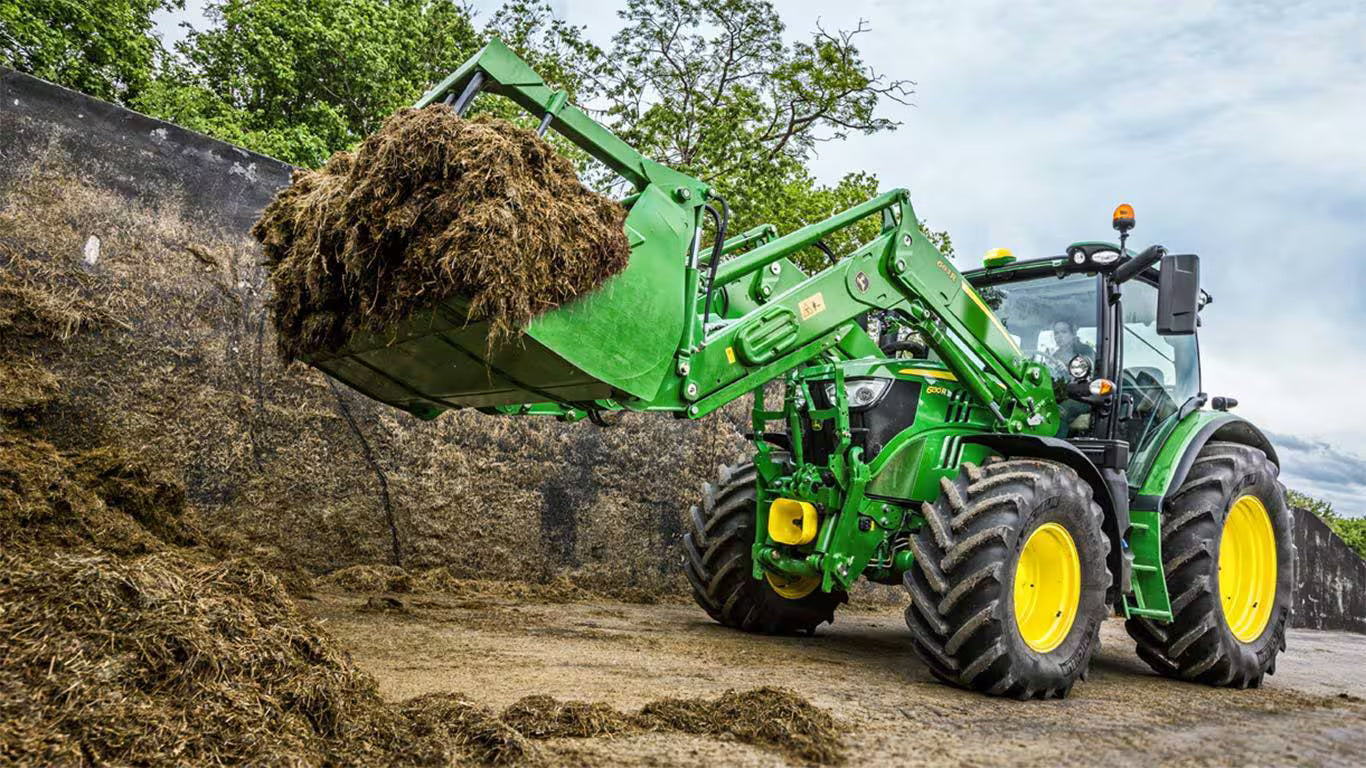

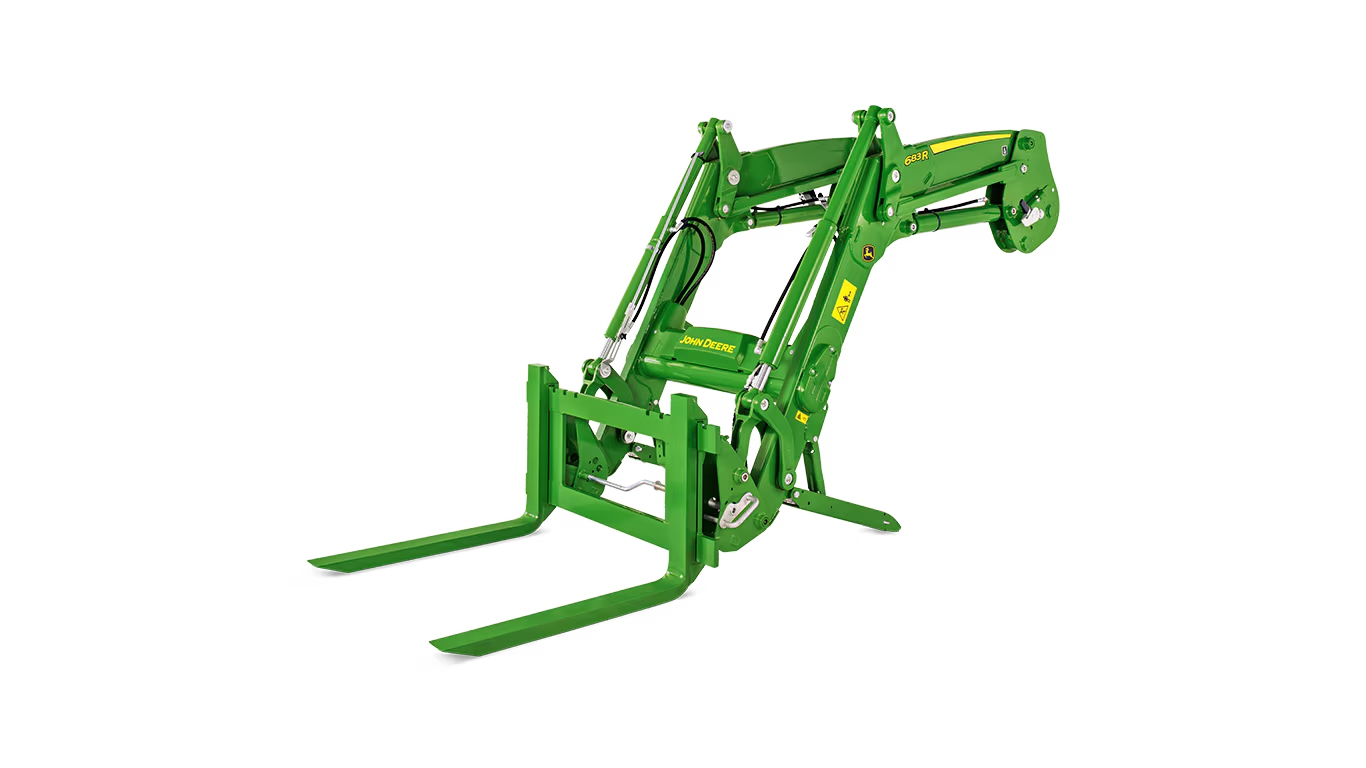

683R Front Loader

Engine (Tractor): 6.8 L PowerTech™ inline‑6, 230–250 hp depending on tractor.
Transmission: IVT standard; optional PowrQuad™, AutoQuad™, CommandPRO™.
PTO: Rear PTO 540/540E/1000 rpm electro‑hydraulically engaged; optional front PTO.
Hydraulics / Hitch: Load-sensing PFC hydraulics (~114 L/min standard, 155 L/min. optional); rear hitch lift capacity up to ~8,500 kg (Cat III).
Weight / Fuel: Approx. 6,800 kg with loader; fuel tank ~240–310 L, DEF tank ~25 L.

Features

Automatic Mast Latch – fast mount/dismount with just one cab exit.
Automatic Implement Latch (AIL) – tool change in under 3 seconds.
Mechanical Self-Leveling (MSL) – increases precision and rollback force.
Curved Boom Design – improves visibility and steering range.
Optional Suspension & Return-to-Position (RTP+) – smoother handling and preset return angles.
