603M

Description

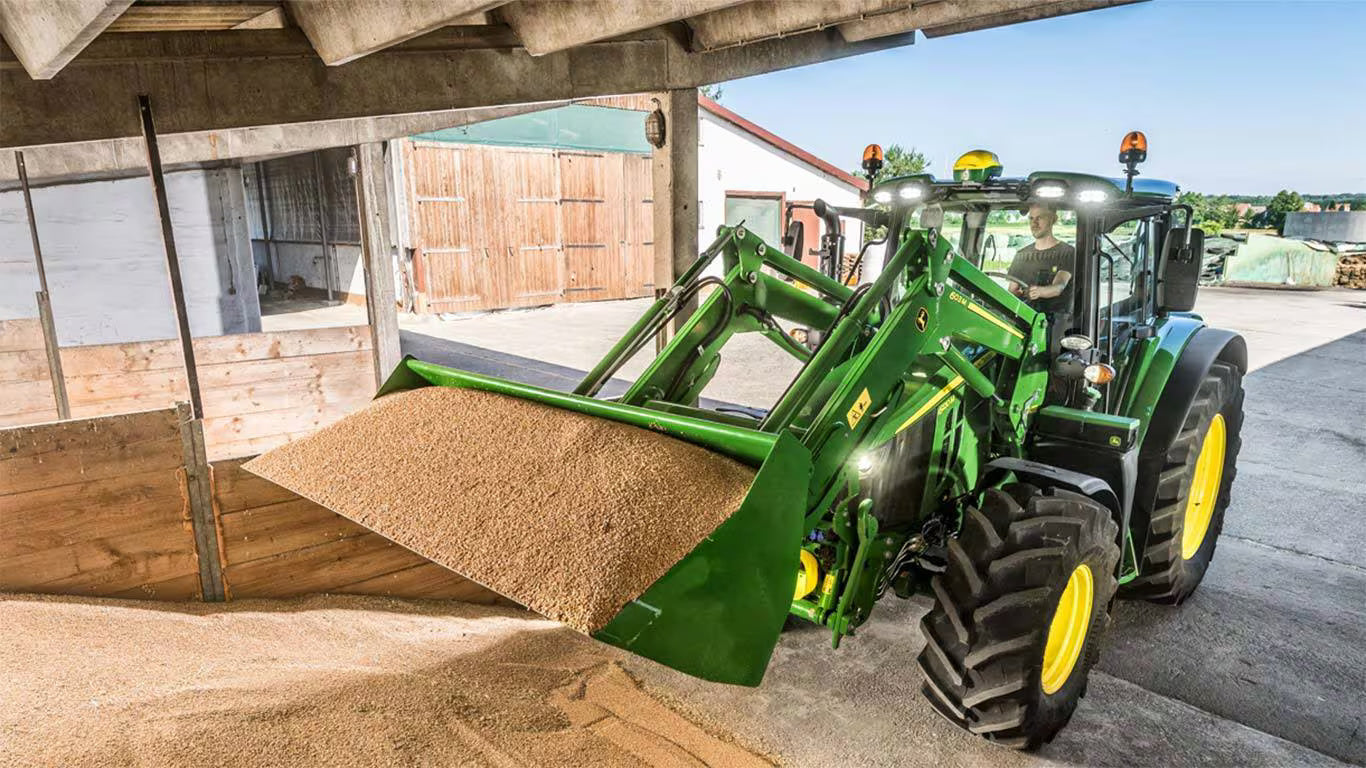

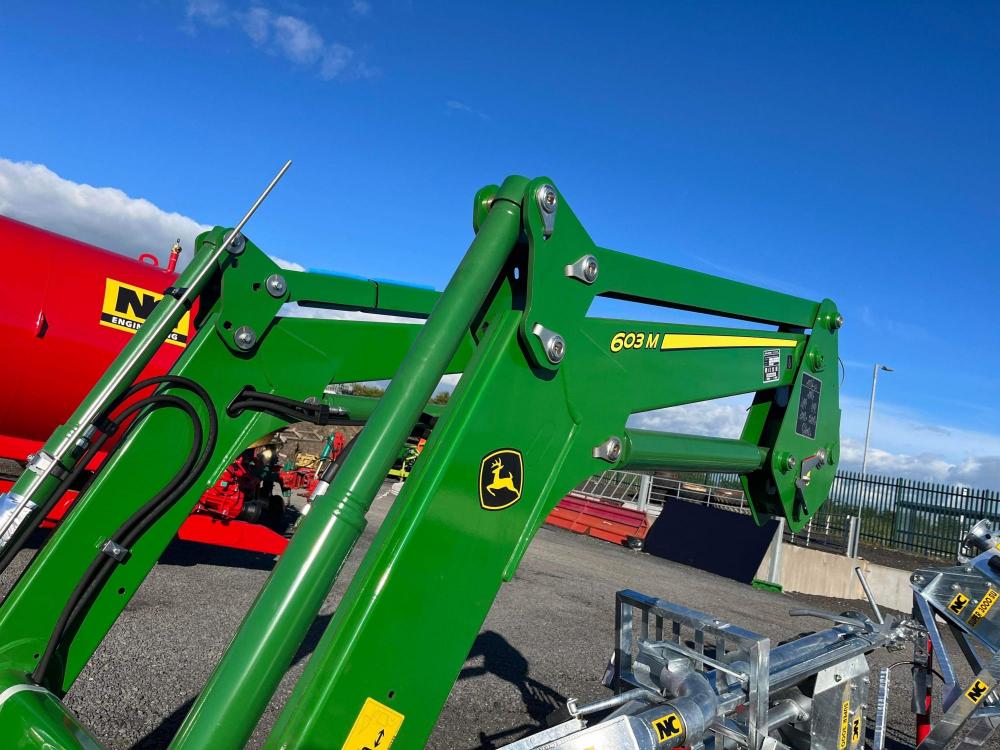

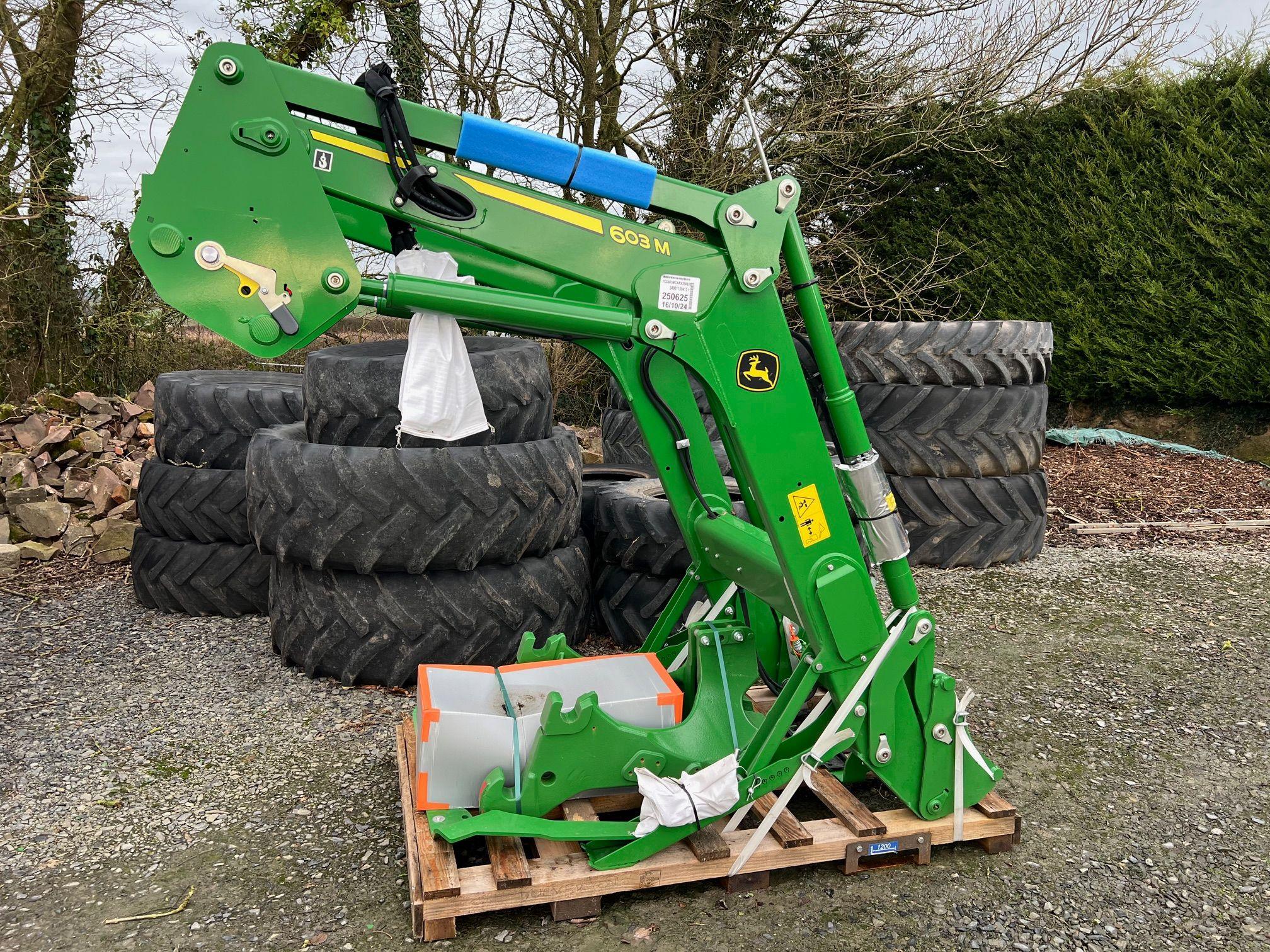

603M Frontloader

Engine (Tractor): Typically on 6M-series tractors (e.g. 6100M–6130M): 4.5 L 4‑cyl PowerTech™ PVS/PSS, ~110–130 hp.
Transmission: PowrQuad™ Plus, AutoQuad™ Plus or CommandQuad™ Plus (16×16, 20×20, or 24×24).
PTO: 540/540E/1000 rpm electro‑hydraulic multi‑disc design.
Hydraulics/Hitch: ~80–114 L/min pump flow (PFC load‑sensing optional); rear Hitch Cat II/IIIN lift ~6300 kg.
Weight/Fuel (Tractor): ~5,800 kg base; fuel tank 260 L (DEF if applicable).

Features

Grease-free pivot points: Low maintenance design with sealed bushings for durability.
Euro-style tool carrier: Allows quick and easy attachment changes for a wide range of implements.
20% lighter than R‑series: Reduces rear ballast requirements and improves agility.
Fast lift response: Raises bucket to full height in about 4 seconds.
Slim boom profile: Hoses routed internally for enhanced visibility.
